Product Details:
|
| Product Name: | Laboratory Drying Oven | Temp Range (℃): | RT+5 ~250℃ |
|---|---|---|---|
| Accuracy: | ±0.1℃ | Power: | 1-2.5KW |
| Voltage: | 110V/60Hz Or 220V/50Hz | Warranty: | 2 Years |
| After-sales Service Provided: | Video Technical Support | Material: | Stainless Steel |
| Timing Range: | 1~9999min | Heating Rate: | About 10mins From RT To 100°C |
| Dimension: | 320*350*350,530*640*610 | ||
| High Light: | DHG Hot Air Oven Sterilization,Hot Air Oven Sterilization Circulating,DHG Oven Dryer Machine Automatic Control |
||

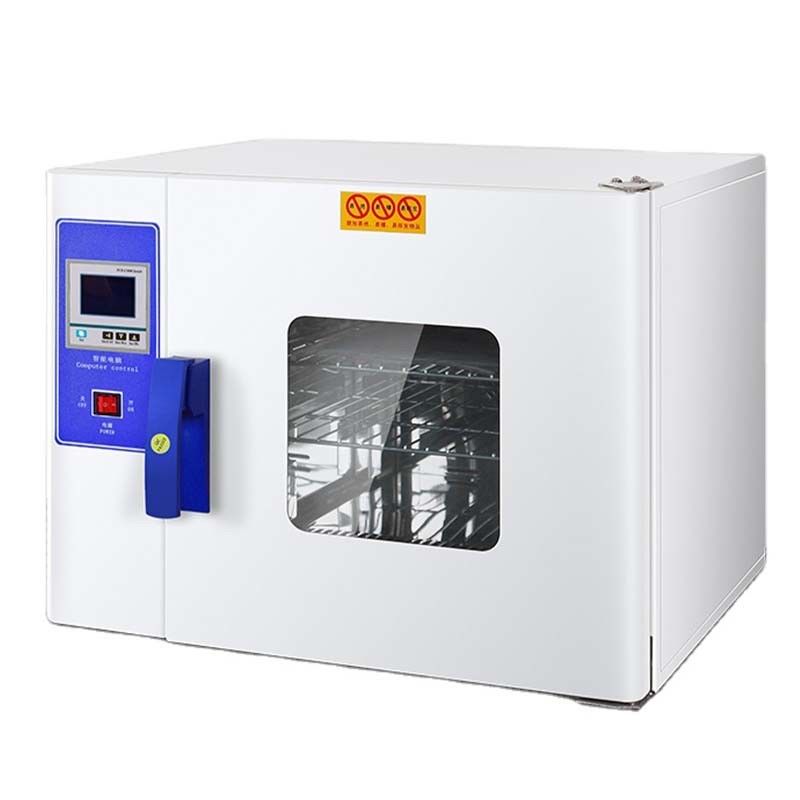

DHG Hot Air Circulating Laboratory Dryer Oven With Automatic Program Control For Lab
DHG series:
Microcomputer intelligent PID control, precision LED display temperature control, timing, over-temperature alarm, RS 485 computer interface, mirror stainless steel inner, anti-acid, anti-corrosion; hot air circulation system and maintenance free.
Product introduction:
●Widely used in drying process, sterilization, thermostatic storage, heat treatment, other fields, the basis equipment of the laboratory and research units, but not for volatile, flammable, explosive and other items, in order to avoid to cause an explosion.
Feature:

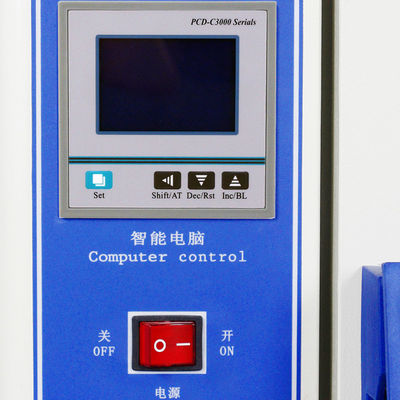

●Precision LCD microcomputer intelligent PID control system, with temperature control, timing and over-temperature alarm, with RS485 computer interface.

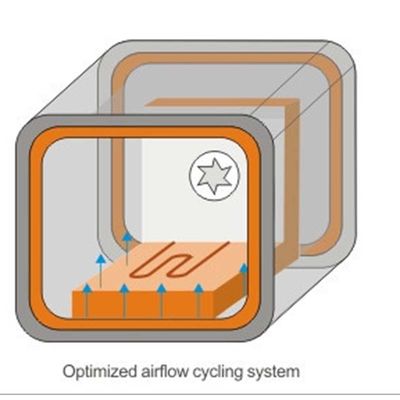

●With standard international brands cooling fan maintenance - free, durability. Perfect combination of duct design to ensure temperature uniformity for the working chamber.

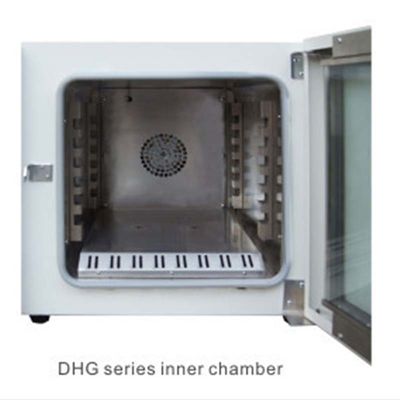

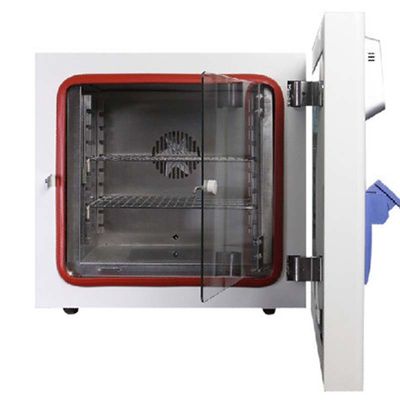

●Mirror stainless steel inner, anti-acid, and anti-corrosion characteristics.
Technical Parameters:
|
Model |
Temp (℃) |
Accuracy |
Fluctuation (%) |
Voltage |
Power (KW) |
Inner size (mm) (H*W*D) |
Overall dimension |
Packing size |
Net weight (KG) |
Shiping weight |
|
DHG-9040 |
RT+5
|
±0.1
|
±1
|
110- 220
|
1 |
320*350*350 |
530*640*550 |
650*720*630 |
36 |
39 |
|
DHG-9070 |
1.2 |
420*450*350 |
630*740*550 |
750*820*630 |
47 |
50 |
||||
|
DHG-9130 |
1.6 |
520*550*450 |
750*890*630 |
870*970*710 |
62 |
66 |
||||
|
DHG-9230 |
2.5 |
750*600*500 |
980*965*770 |
1100*1045*850 |
96 |
105 |
||||
|
DHG-9040C |
±0.5 |
±1 |
1 |
320*350*350 |
530*640*550 |
650*720*630 |
36 |
39 |
||
|
DHG-9070C |
1.2 |
420*450*350 |
630*740*550 |
750*820*630 |
47 |
50 |
||||
|
DHG-9130C |
1.6 |
520*550*450 |
750*890*630 |
870*970*710 |
62 |
66 |
||||
|
DHG-9230C |
2.5 |
750*600*500 |
980*965*770 |
1100*1045*850 |
96 |
105
|

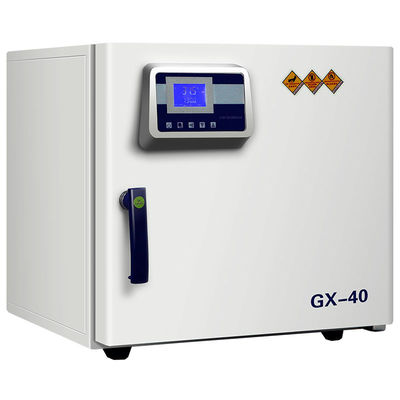

GX series:
Cavity preheating technology air duct forced convection system; microcomputer control system. Insulation technology; intelligent numerical display/uniformity temperature.
Widely used in the drying, sterilization, heated storage, heat treatment and other fields, it is laboratories and research units' basic corollary equipment.
Can meet different temperature, it will provide a constant temperature, with the thermal insulation to ensure the smooth progress of the experiment and culture of the sample.
Technical Parameters:
| product model | ALLIGENT-GX Thermostatic Drying Oven | ||||
| GX-40 | GX-70 | GX-130 | |||
| Convection Mode | Forced Convection | ||||
| Control System | Microprocessor PID | ||||
| Temp. Range (℃) | RT+5℃~250℃ | ||||
| Temp. Accuracy(℃) | 0.1 | ||||
| Temp. Fluctuation(℃) | ±0.5(in the of range 50～240℃) | ||||
| Temp. Uniformity | 2%(in the of range 50～240℃) | ||||
| Timer Range | 0～99h,or 0～9999min,can be choose | ||||
| Working environment | Ambient temperature:10~30℃, Humidity<70% | ||||
| Insulation materials | Imported environmental protection type material | ||||
| External Dimensions(mm) (H×W×T) | 570×580×593 | 670×680×593 | 770×780×693 | ||
| Internal Dimensions(mm) (H×W×T) | 350×350×350 | 450×450×350 | 550×550×450 | ||
| Interior Volume(L) | 40 | 70 | 130 | ||
| Interior steel materials | SUS304 stainless steel inner | ||||
| The number of standard tray | 2 | ||||
| Power(W) | 770 | 970 | 1270 | ||
| Supply voltage | 220V/50Hz | ||||
| Net weight(KG) | 40 | 48 | 65 | ||
| Shipping weight(KG) | 43 | 51 | 69 | ||
| Packing size(mm) (H×W×T) | 690×660×680 | 790×760×680 | 890×860×780 |
||
